    Focus chainstay spacing problem, or something different?

    Hi All,

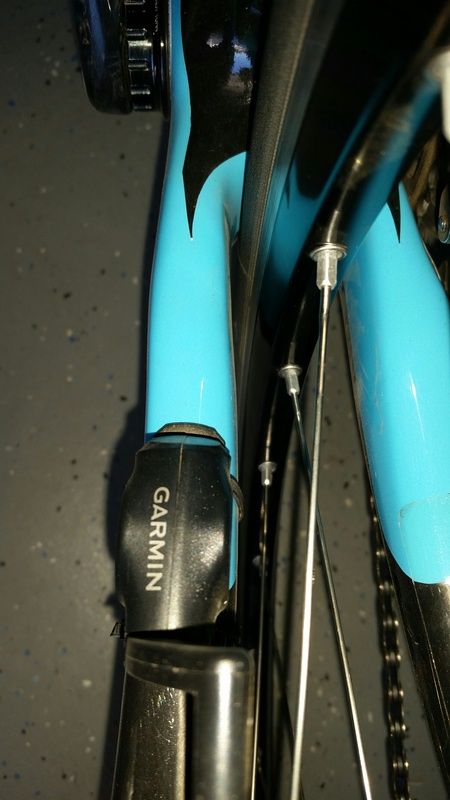

    I love my bike. Picked up the frame last December and it's amazing. For reference it's a 2014 Focus Cayo Evo Team Replica. Anyways, I'm not sure what to make of this potential problem. It seems that the spacing on the chainstays at the bottom bracket could be off. I had noticed it before, but initially thought that was how it was supposed to be. I don't think that anymore. Could it be off, could it be something different, or is it supposed to be like this? I don't notice anything weird when riding it, but it just looks strange to me and logically thinking, leads me to believe that the spacing should be equal. Please see the pics below. You can clearly see that the clearance on the NDS is quite a bit tighter than the DS.

    Before you mention wheel true, it was just done prior to these pics from a very reputable shop. It was trued and dished properly.





    So, thoughts? Ideas? Suggestions? Something else that came to mind after reading a previous post was that the drop outs could be out of whack. Could this be?

    Thanks in advance.

    Brandon

  2. #2
    RoadBikeReview Member
    Reputation: redcon1's Avatar
    Join Date
    Jul 2008
    Posts
    134
    Well the obvious thing to check, even more basic then to verify wheel truing/dishing, is to ensure the rear axle is seated properly in the dropouts.
    I assume you did that first?

  3. #3
    RoadBikeReview Member
    Reputation: BigPoser's Avatar
    Join Date
    Jan 2013
    Posts
    571
    Quote Originally Posted by redcon1 View Post
    Well the obvious thing to check, even more basic then to verify wheel truing/dishing, is to ensure the rear axle is seated properly in the dropouts.
    I assume you did that first?
    Absolutely. That was actually why my second thought was that maybe the dropouts weren't correct. If they were just off the slightest amount it would do this as well.

  4. #4
    RoadBikeReview Member
    Reputation: redcon1's Avatar
    Join Date
    Jul 2008
    Posts
    134
    Yeah I figured as much. Sorry, I got nothin' then.

    Maybe remove the rear QR and take a picture of each side dropout with the axle seated?

  5. #5
    RoadBikeReview Member
    Reputation: bikerjulio's Avatar
    Join Date
    Jan 2010
    Posts
    7,492
    Turn the wheel around and check again. That will eliminate incorrect dish.
    We just don’t realize the most significant moments of our lives when they’re happening
    Back then I thought “well there'll be other days”
    I didn’t realize that was the only day
    https://www.youtube.com/watch?v=Y9yrupye7B0

    There's sometimes a buggy.
    How many drivers does a buggy have?
    One.
    So let's just say I'm drivin' this buggy...
    and if you fix your attitude you can ride along with me.
    http://www.youtube.com/watch?v=GekiIMh4ZkM

  6. #6
    RoadBikeReview Member
    Reputation:
    Join Date
    May 2013
    Posts
    16
    I have a Focus Izalco and have also found that the chainstays are noticeably closer on the non drive side.

  7. #7
    RoadBikeReview Member
    Reputation:
    Join Date
    Jun 2013
    Posts
    183
    On my Izalco the drive side chain stay has 5mm of clearance and the non-drive side has 3mm. The wheel remains in the same plane when I reverse it.

  8. #8
    RoadBikeReview Member
    Reputation: redcon1's Avatar
    Join Date
    Jul 2008
    Posts
    134
    My Izalco Ergo frame has exactly equal clearance, at least to my eyes. Can't get a micrometer in there to measure.

  9. #9
    RoadBikeReview Member
    Reputation: BigPoser's Avatar
    Join Date
    Jan 2013
    Posts
    571
    Finally flipped the rear wheel around today while giving the bike a bath and the spacing is the same either way.

    So I would think that it's either supposed to be this way, or the rear dropout is messed up.

  10. #10
    RoadBikeReview Member
    Reputation:
    Join Date
    Oct 2013
    Posts
    67
    The left, non drive side chainstay behind the bottom bracket is a common area of stress and carbon fiber failure. Could it possibly be engineered thicker in that area and therefore less clearance on that side?

  11. #11
    RoadBikeReview Member
    Reputation: BigPoser's Avatar
    Join Date
    Jan 2013
    Posts
    571
    Quote Originally Posted by K Dub Cycle View Post
    The left, non drive side chainstay behind the bottom bracket is a common area of stress and carbon fiber failure. Could it possibly be engineered thicker in that area and therefore less clearance on that side?
    Obviously I'm not an expert, but I don't think so because it's not quite centered within the seat tube either. I'm at a loss.

  12. #12
    RoadBikeReview Member
    Reputation:
    Join Date
    May 2012
    Posts
    21
    Quote Originally Posted by BigPoser View Post
    You can clearly see that the clearance on the NDS is quite a bit tighter than the DS.
    I have a 2013 Focus Cayo Evo. What's interesting is that I have noticed the same about my chainstays only the opposite than yours. My drive-side has a smaller gap between the chainstay and wheel than the non-drive-side. I have always thought it's intentional either due to a thicker drive-side chainstay or the drive-side chainstay is angled differently for crankset clearance. As my wheel perfectly aligns the seat-tube I never really thought it was an issue.

  13. #13
    RoadBikeReview Member
    Reputation:
    Join Date
    Oct 2013
    Posts
    67
    Apparently, your off-center chainstay spacing is not isolated to the Focus brand. My Pinarello Dogma 65.1 also has this asymmetric chainstay spacing. Mine has the smaller tire-chainstay gap on the left (non drive side) chainstay behind the bottom bracket. This is with all 3 Campagnolo wheelsets I own.
